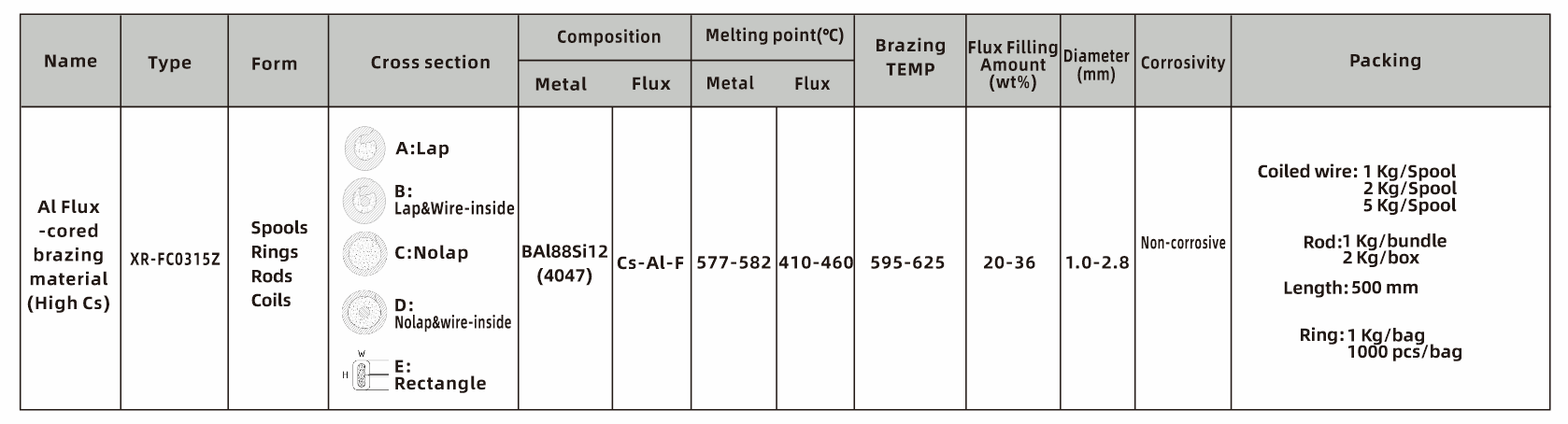

① Al Flux-cored brazing material( High Cs ) XR-FC0315Z is a high cesium Aluminum flux-cored brazing material, The inside is a white highly active cesium salt fluoride flux, the low melting point can effectively solve the problem that the workpiece is easy to overburn during brazing which is non-corrosive, No need to clean after brazing, easy to use. The outer skin is a tubular silver aluminum-silicon metal alloy. lt is mainly suitable for brazing aluminum and aluminum metal.Mainly used in the refrigeration industry, such as the brazing of aluminum tubes and aluminum tubes. It is especially suitable for automatic and manual brazing of aluminum heat exchangers and aluminum parts, Suitable for flame brazing, high frequency brazing.

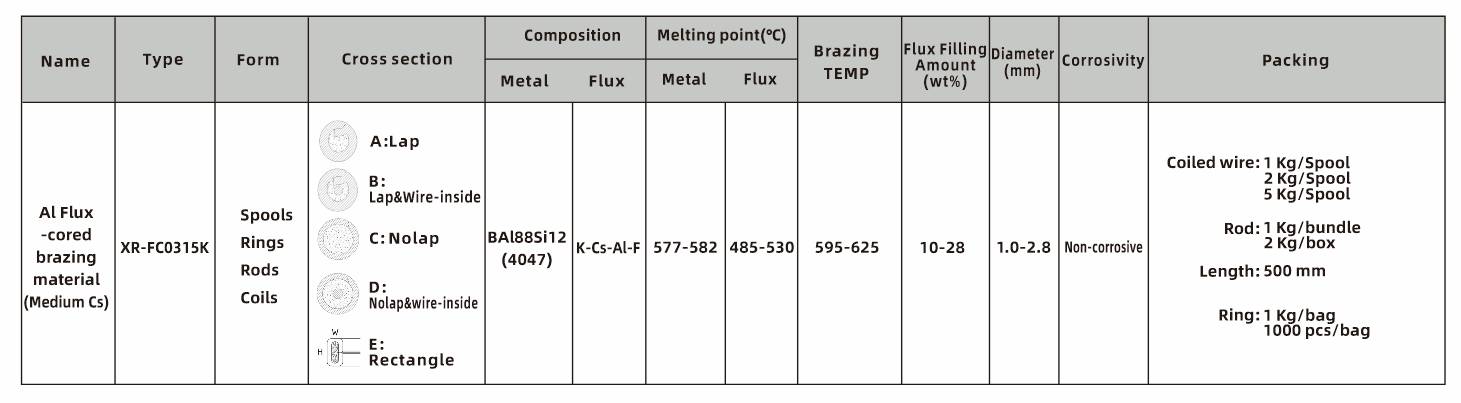

② Al Flux-cored brazing material( Medium Cs ) XR-FC0315K is a medium Cs flux-cored brazing material, the inside is a white highly active cesium salt fluoride flux, the melting point is low, the workpiece is not easy to overburn during brazing. Non-corrosive, no need to clean afte brazing, easy to use. The outer skin is a silver aluminum-silicon metal alloy, lt is suitable for brazing of magnesium-free aluminum alloy and high-magnesium-aluminum alloy. Mainly used in the refrigeration industry, such as the brazing of aluminum tubes and aluminum tubes.It is especially suitable for automatic and manual brazing of aluminum heat exchangers and aluminum parts. Suitable for high Mg-contained Al alloy, both Automated, manual brazing. Suitable for flame brazing , furnace brazing, high frequency brazing.

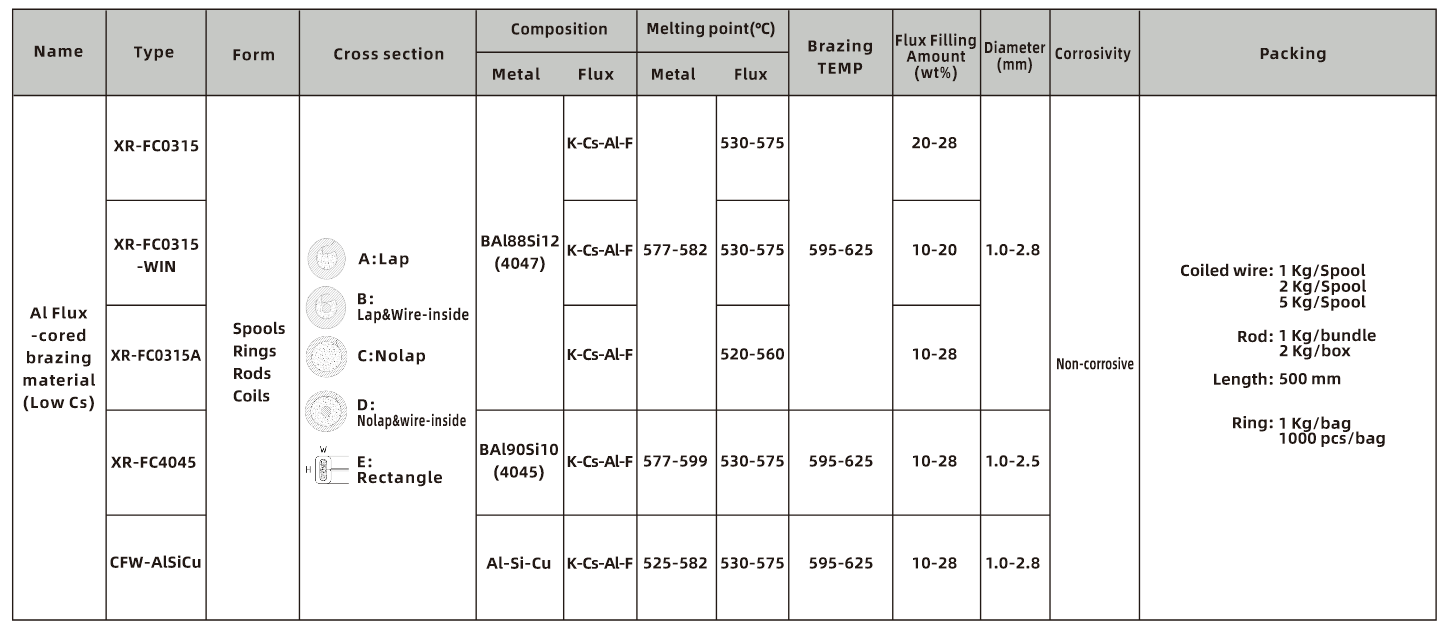

③ Al Flux-cored brazing material( Low Cs ) XR-FCO315, XR-FCO315-WIN,XR-FC0315A, XR-FC4045, CFW-AlsiCu belong to the general type low Cs flux-cored brazing material, the inside is a highly active cesium salt fluoride flux flux, non-corrosive, no need to clean after brazing, easy to use.The outer skin is a silver aluminum-silicon metal alloy. XR-FCO315, XR-FC0315-WIN, XR-FC0315A are three kinds of flux-cored brazing material, suitable for brazing of magnesium-free aluminum alloys and high-magnesium aluminum alloys, Suitable for flame brazing, furnace brazing, high frequency. XR-FC4045 is suitable for brazing aluminum and aluminum, aluminum and stainless steel, Suitable for flame brazing,furnace brazing,high frequency. CFW-AlSiCu is suitable for brazing aluminum and aluminum, aluminum and copper, Suitable for flame brazing, furnace brazing,high frequency.

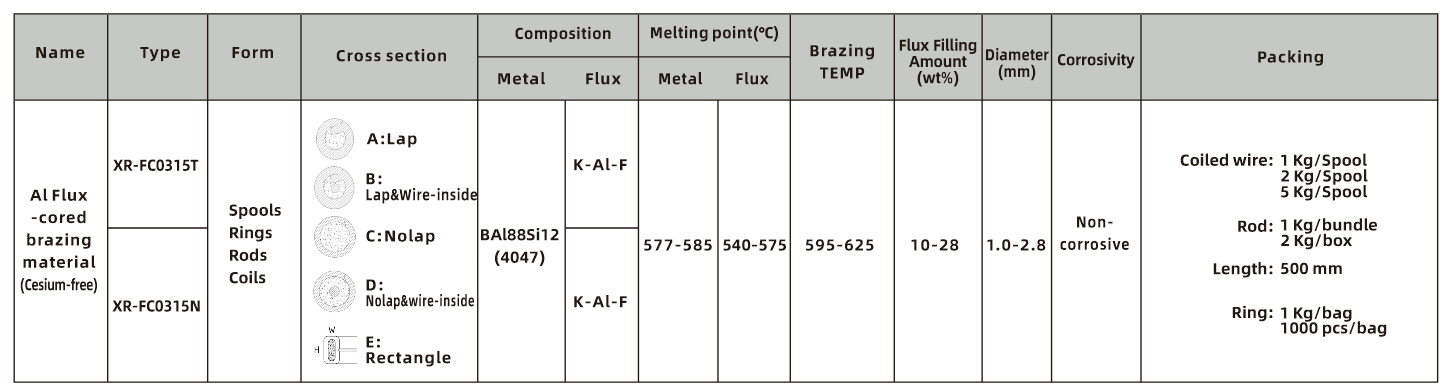

XR-FC0315T and XR-FC0315N belong to ordinary cesium-free flux brazing material, the inside is a highly active potassium salt fluoride flux, non-corrosive, no need to clean after brazing, easy to use. The outer skin is a silver aluminum-silicon metal alloy. lt is suitable for flame brazing between magnesium-free aluminum alloy and low-magnesium-aluminum alloy, furnace brazing, and high-frequency brazing.
|
